MWD Tool Test Box

Test box for testing tool components in the shop area.
products.sku: 100306
€3752.50

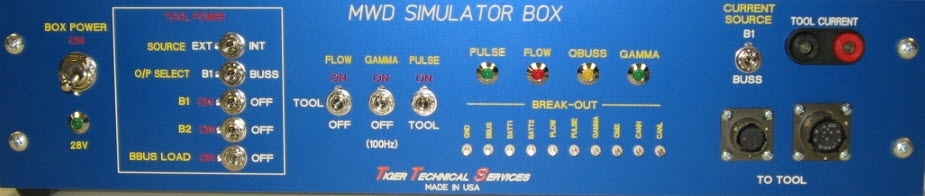

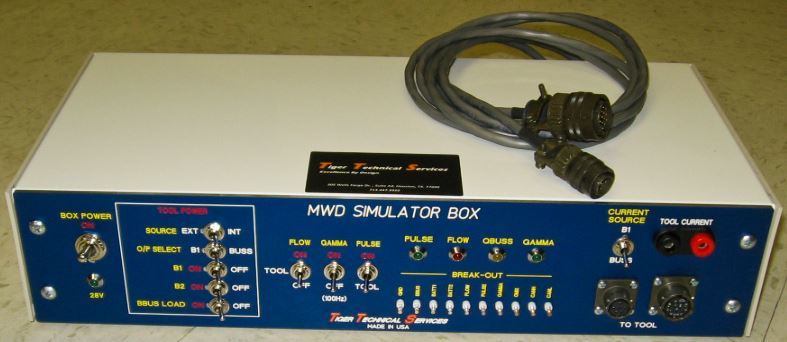

The MWD Tool test box is an interface between the MWD tool string and the surface decoding system to allow surface testing of the tool and surface gear.

  1.  Simulates flow on/off conditions by manipulating the flow line
  2.  Simulates static standpipe pressure with flow on condition (5000 psi)
  3.  Converts 5v pulses from the tool to 4-20ma signal to simulate down hole pulsing (50psi pulse  height) to allow full decoding of data from tool string.
  4.  Visual indication of Pulse state and RxTx communication status

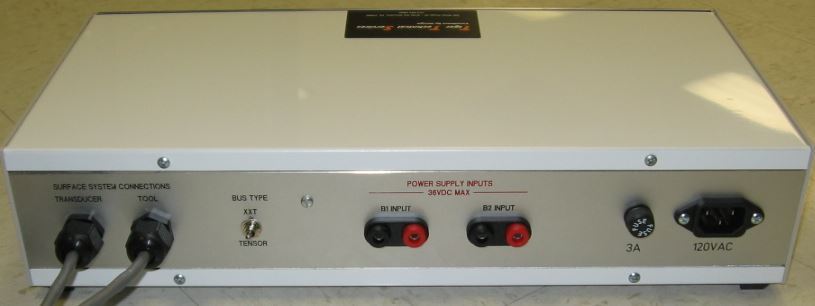

  5.  Powered from internal power supply (28v) or from an external power supply/Battery via the rear  banana jacks
  6.  Battery 1 and Battery 2 external inputs
  7.  Built in Gamma signal simulator (100Hz)
  8.  Built in Pulse signal simulator (.5Hz)
  9.  Available with 2nd power supply for Battery 2 input.   (Requires purchase of B2 POWER SUPPLY option 100307).
  10. Available with integrated USB-CAN bus interface integrated into the 10 pin connector with a USB port on the rear panel. (Requires purchase of USB-CAN option 100308)

FOR B2 POWER SUPPLY OR USB-CAN OPTION:

  • Add MWD Tool Test Box to cart
  • Add B2 POWER SUPPLY option or USB-CAN option to cart.
